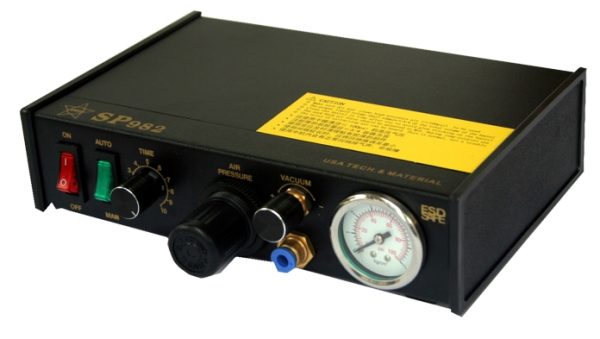

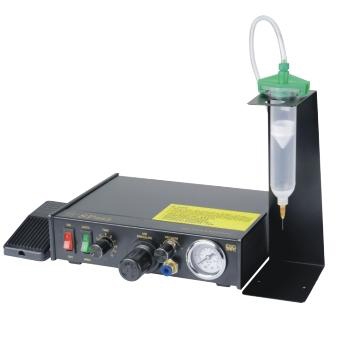

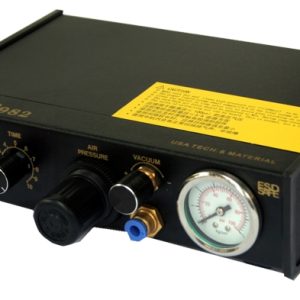

Semi-Auto Glue Dispenser Solder Paste Liquid Controller Dropper TBK-982A

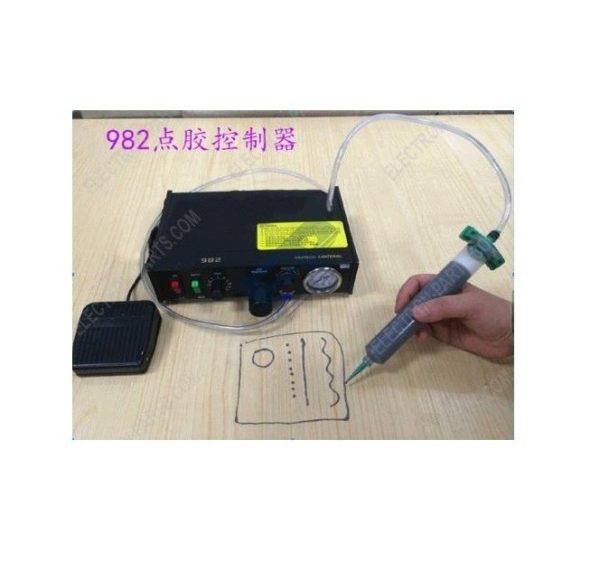

Operated by a foot pedal switch and preset timer, this automatic liquid dispenser can dispense fixed amount of glue/soldering paste to determined location via the needle and barrel.

Features:

• Two controlling modes: manual mode & auto mode.
• Precise control of dispensing drops and dispensing cycle.
• Suck-back function ensures no leakage drops.
• Designed for wide range of application: cellphone key-press, printing, switch, connectors, computer, digital products, digital camera, MP3, MP4, electronic toys, horn, buzzer, electronic components, integrated circuit, LCD screen, relays, speaker, LED lamp, chassis bonding, optical lens, mechanical components, seal, etc.
• Work great for secure the SMD components position before soldering work.
• Suitable for many different liquids, such as quick-drying glue, red glue, yellow glue, epoxide-resin glue, silica gel, grease, screw locking glue and soldering flux.

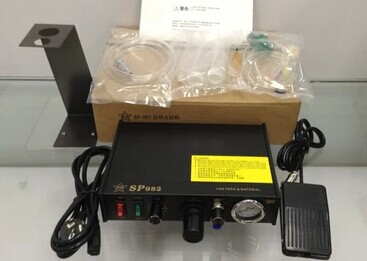

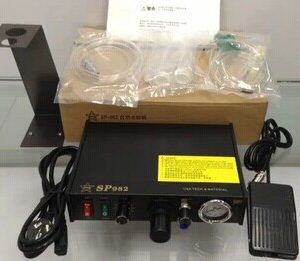

• System comes with 3 30cc liquid barrels, 10 steel needle/tips and 10 plastic tips.
• This unit need to be connected to air compressor.

Specifications:

• Timer: Dispensing Time Programmale: 0.01S,0.1S,0.2S,0.3S
• Cycle Initiation: Maintained or Momentary
• Repeat tolerance: ±0.5%
• Voltage input: AC 220~240, 50Hz/AC
• Internal voltage: 24V DC
• Minimum deposit: 0.01ml
• Air input: 2.5 to 7 bar(35 to 100psi)
• Air output: 0.1 to 5.5 bar(1 to 78psi)
• Item size: 240*155*58MM (L.W.H)
• Item weight: 2.25KG
