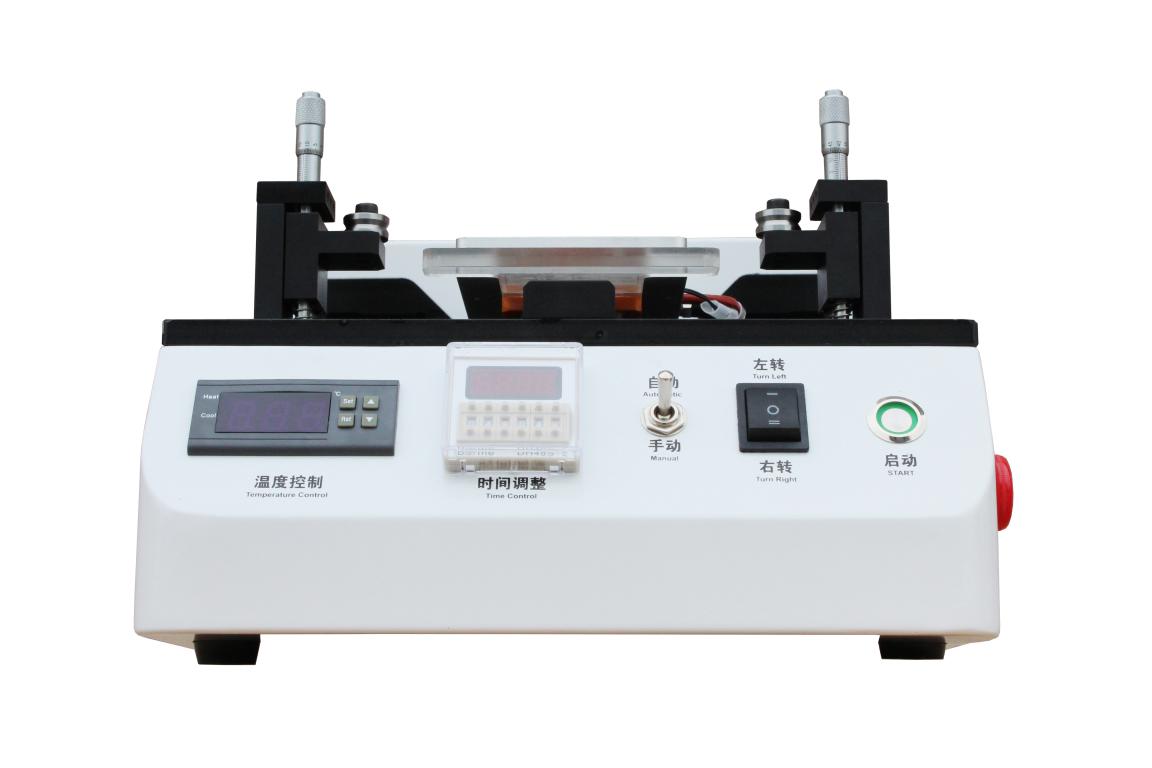

Semi Automatic LCD Separator Built-in Vacuum Pump for Separate Assembly Split LCD Touch Screen Glass #MT

Product Description

1.Safety Rules

      For your personal safety, please read the manual carefully, be familiar with the machine's applications and limitations, as well as the related potential danger .

A.  Please read the manual carefully before usage.

B.  Do not start device before closing the doors.

C.  Please close the protect door when working. Do not put your hand on the cutting space.

D. Using a third ground connection，poor ground line may cause equipment damage or endanger personal safety.

E.  Only professional man can open electrical boxes.

2.Machine technicals

Machine driver：AC220V  350W

Optional for AC110V /AC220V

Working environment：20-30℃,clean and dustfree.

Efficiency : 1H/100pcs

Heating mode: constant temperature heating

Device size：500*260*300mm

Device weight(NT)：20kg

Device power：350W

3.Features

*Built in mini Vacuum Pump;

* The components are imported. Constant temperature heatin, temperature can be staying ±5℃.

* Customized motors built in to ensure long time operation without overheating

 *Can be setted cutting speed accurately by cutting frequency which controlled by time

4.Operation Process

1.Turn on after power plug, preheating the plate by setting the temperature as 90℃;

2. Put the product on the plate after the real temperature get to the setting temperature;

3.Setting to automatic mode, then press start, adjust the place of cutting wire by Micrometer;

 4.Turn on the speed control button(Right side of the machine), adjust the speed by clockwise slowly;

5.Push the plate lightly to make sure the cutting wire can cut the whole screen stable, you can try 2-3 times repeatedly;

6.Finished the cutting, press the start button again to stop, then get the separate screen.

5. Maintenance
