TBK Universal Alignment Mold For Mobile phone LCD Glass Max 7inch

was $45.00 Special Price $32.00
Availability: In stock
SKU
JX8085

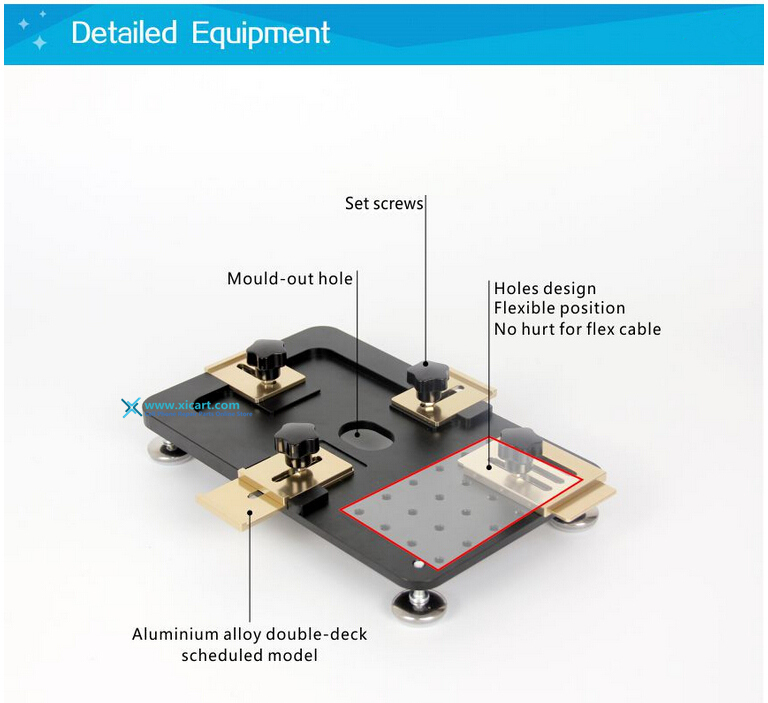

TBK Universal Alignment Mold For Mobile phone LCD Glass Max 7inch

Describtion:

1) Brand: TBK

2) Function: Universal Alignment Pricesion Mold for all smart phone LCD Glass under 7 inch precise positiong.

3) Suitable for cell phone like for Iphone 4/4s/55c/5s/6/6 plus, for Samsung Galaxys3/s4s5/s6/note1/note2/not3/not4, for LG, for HTC ect.

3) 100% brand new, high quality & durable.

4) Each prouducts has been tested befor shipment.

5) Replacement for Cracked Smart phone LCD Glass under 7 inch.

6) We supply different mold for Iphone for Samsung, if you have any further interested pls contact us.



Installation Steps:

1,Put the main mold,fix the screw feet at the bottom of the main mold.Then screwed into the mold bottom of the screw holes.

2,Put the all galss clip and lcd clip,overlap each group,then put it in the main mold groove.

3,Fix screws each group,clockwise to tighten.



Using Steps(iPhone 5)

1,put the assembly and glass that need to be repaired up in the mold.

2,move all clips,align touch glass and lcd respectively after alignment tighten.

3,torn the OCA of lcd,the put the lcd in the mold to align it postioning.

4,put the touch glass above of the lcd alignment position completion.



PS:

if you need to change other mobile phone model repea the above steps.



Notice

mold surface must be kept clean,if there are any foreign matter please use the remove glue liquid to clean up it so as to ensure accurate positioning.
