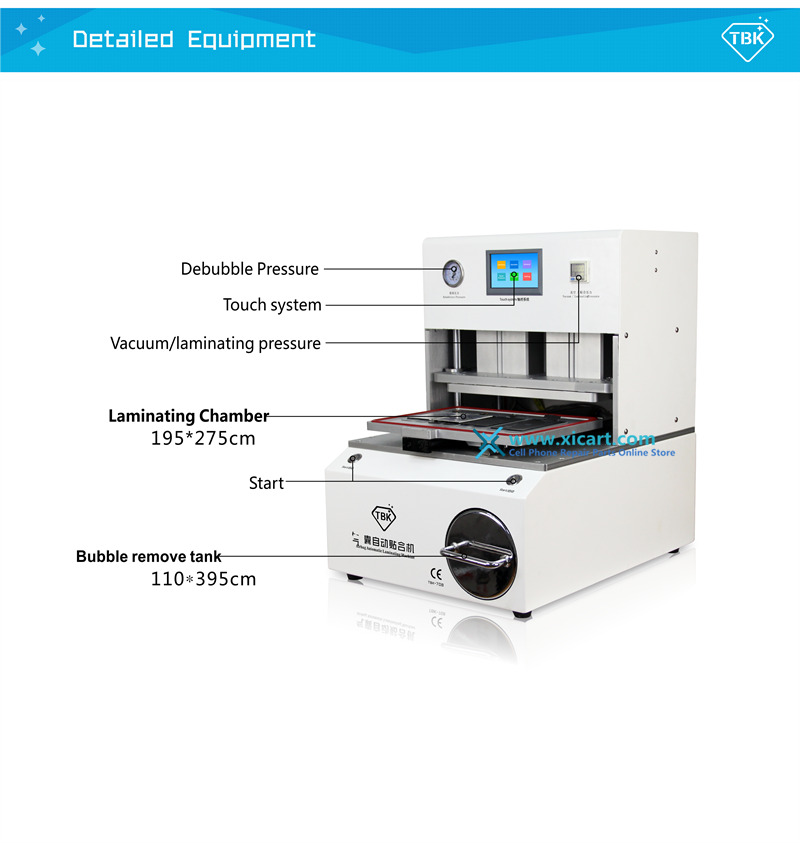

2016 Newest Airbag Automatic vacuum laminating machine and bubble remover #TBK-708

This is Laminating and bubble remove all in one machine.

Built-in Air Compressor and Vacuum Pump for this machine.

How to operate if you purchased the laminating and bubble remove machine.

All of parameters need to as things really are Set-up for machine.

Different LCD, OCA material or different country set up is not the same.

1.       Plug in power line and turn on power switch

2.       Touch system to start work, Operation interface can switch in both Chinese and English

          ,Click Setting English .

3.       Set-up the Vacuum time to 15s,Laminating time 30s

4.       Removing bubble time 3-10mins

5.       Laminating Debubble temperature 40 degree

6.       Professional Curved Touch Scree Repair and Removal Bubble Machine

7.       It have been realized 2 kinds of touch screen laminating and removal bubble

Parameter

Product Type:Automatic Remove Bubble and Laminating Machine

Model: TBK-708

Voltage:AC220V

Power:800W

Size:400*500*540mm

Net weight:66kg

Carton:490*620*660mm

Gross Weight:77kg
